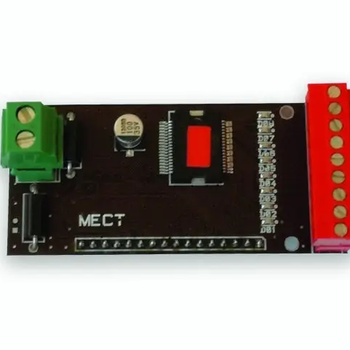

MPNE - digital outputs expansion MPNE100102

The MPNE - digital outputs expansion is an 8 digital outputs board that must be connected to the MPNE1001 base board. The MPNE1001 base board can be expanded with only 2 expansion modules, even of different type.

Expansion modules available:

• 8 digital inputs (code 01);
• 8 digital outputs (code 02);
• 2 analog inputs and 1 analog output (code 05).

HARDWARE

INPUTS / OUTPUTS:

• 8 digital outputs (PNP 0-24Vdc). For the relay output the ACIN01 product is needed.

Dimensions: 33(l) x 32(h) x 73mm(depth)

Working temperature: 0÷55°C

Weight: 0,027Kg
