Description

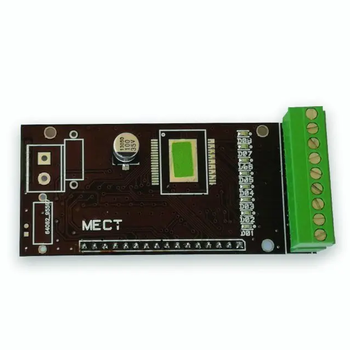

The MPNE - digital inputs expansion is an 8 digital inputs board that must be connected to the MPNE1001 base board. The MPNE1001 base board can be expanded with only 2 expansion modules, even of different type.
Expansion modules available:
- 8 digital inputs (code 01);
- 8 digital outputs (code 02);
- 2 analog inputs and 1 analog output (code 05).
Features
HARDWARE
INPUTS / OUTPUTS:
- 8 digital inputs (PNP 0-24Vdc).
Dimensions: 33(l) x 32(h) x 73mm(depth)
Working temperature: 0÷55°C
Weight: 0,020Kg
