MPNE - analog expansion MPNE100105
Espansione della base MPNE1001 con 2 ingressi analogici e 1 uscita analogica.
Description

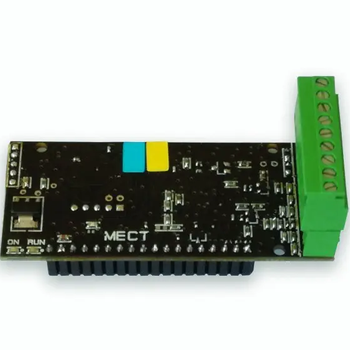

The MPNE - analog expansion is a board with 2 analog inputs and 1 analog output.The expansion module must be connected to the MPNE1001 base board. The MPNE1001 base board can be expanded with only 2 expansion modules, even of different type.
Expansion modules available:
- 8 digital inputs (code 01);
- 8 digital outputs (code 02);
- 2 analog inputs and 1 analog output (code 05).
Features
HARDWARE
INPUTS / OUTPUTS:
- 2 analog inputs configurable by software (0÷10V, 0÷20mA, 4÷20mA, PT100, TC: J, K, T, S, B, R) 12bit resolution.
- 1 analog output (0÷10V or 0÷20mA) 12bit resolution.
Dimensions: 33(l) x 32(h) x 73mm(depth)
Working temperature: 0÷55°C
Weight: 0,025Kg
