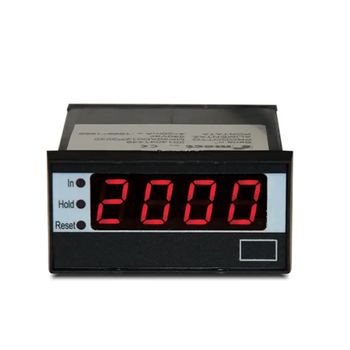

MP30 P2

4 digit display with fixed scale in a 36x72 box for DC or AC voltage input, DC or AC current input or potentiometer input.

Ask a quote

Description

The MP30 P2 model is a programmable instrument at fixed scale.

The available scales are shown in "Characteristics" section.

The instrument offers the following functions :

4 digit display (-1999 +1999 reading points).
automatic reading zeroing
fixed zero (visualisation from -1990 to 1990)
set up by not accessible keys
programmed filter (from 0,5 to 33 conv/sec)

Features

Readings: 4 (2000) digits
Accuracy input DC: < 0,5%
Accuracy input AC: 2%
Thermal stability: 50 ppm/°C
Potentiometers connectable: from 500Ω to 50KΩ
Potentiometer power supply: 2,0Vdc
Power supply: 230Vac 50÷60HZ | 115Vac 50÷60HZ | 25Vac 50÷60HZ | Vcc o Vpt (12÷30Vdc)
Power absorption: 1,5 W
Max working temperature: 50 °C
Digits height: 13mm
Dimensions: 36x72 ( 90 mm. Depth)
Mounting plate: 33mm (h) x 69 mm (l)
Weight: 250 gr.
Mounting: by bolts

MEASURING SCALES
MODEL	RANGE	INPUT IMPEDANCE
MP30 AA	01: 1.999mAac*	100Ω
	02: 19.99mAac*	10Ω
	03: 199.9mAac*	1Ω
	04: 1.999Aac*	0,1Ω
	05: 9.99Aac*	0,005Ω
	06: T.A./1Aac	0,1Ω
	07: T.A./5Aac	0,01Ω
MP30 AD	01: (0)4÷20mAdc	20Ω
	02: 1.999mAdc*	100Ω
	03: 19.99mAdc*	10Ω
	04: 199.9mAdc*	1Ω
	05: 1.999Adc*	0,1Ω
	06: 9.99Adc*	0,005Ω
	07: shunt ext.*	∞
MP30 PO	Ingresso potenziometrico	∞
MP30 VA	01: 199.9mVac*	∞
	02: 1.999Vac*	∞
	03: 19.99Vac*	1MΩ
	04: 199.9Vac*	1MΩ
	05: 300Vac*	1MΩ
	06: 0÷1Vac*	1MΩ
	07: 0÷10Vac*	1MΩ
	08: 0÷100Vac*	1MΩ
MP30 VD	01: 199.9mVdc	∞
	02: 1.999Vdc	∞
	03: 19.99Vdc	1MΩ
	04: 199.9Vdc	1MΩ
	05: 300Vdc	1MΩ
	06: 0÷1Vdc	1MΩ
	07: 0÷10Vdc	1MΩ
	08: 0÷100Vdc	1MΩ
